Je huishoudverlichting bedienen met stemcommando's

Onderdelen en benodigdheden

Over dit project

Het doel van dit project is aan te tonen dat je je huishoudverlichting kunt besturen met alleen stemcommando's. De 3 LEDs vertegenwoordigen verschillende systemen in huis als voorbeeld.

Benodigdheden

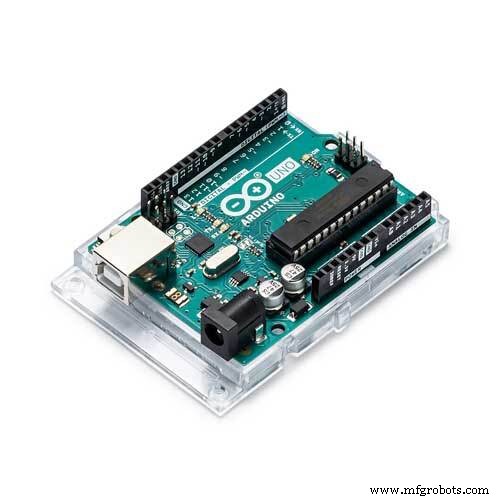

1. Arduino Uno

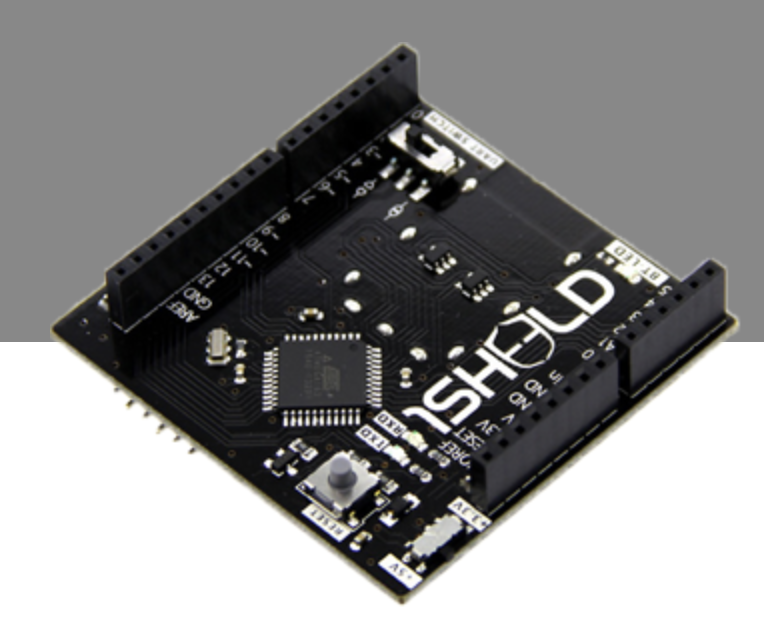

2. 1Sheeld

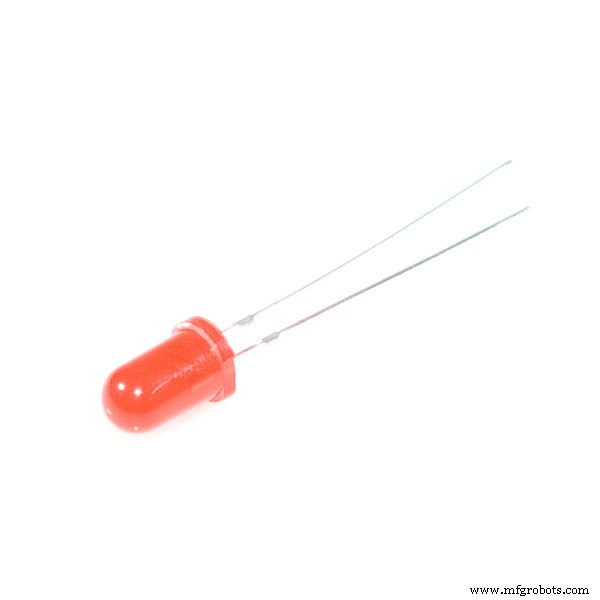

3. 3 LEDs (verschillende kleuren)

Sluit de schakeling aan zoals hieronder getoond:

Werking

1. Open de 1Sheeld-app en koppel deze met je 1Sheeld.
2. Open de Voice Recognition-shield.



3. Druk op "Tap to speak" en zeg "play" → alle 3 LEDs gaan aan.



4. Zeg "stop" → alle LEDs gaan uit.



5. Zeg "blue" → alleen de blauwe LED gaat aan.



6. Zeg "yellow" → alleen de gele LED gaat aan.



7. Zeg "green" → alleen de groene LED gaat aan.



Code

Arduino-code

#define CUSTOM_SETTINGS
#define INCLUDE_VOICE_RECOGNIZER_SHIELD
#define INCLUDE_MUSIC_PLAYER_SHIELD
#define INCLUDE_TERMINAL_SHIELD

#include <OneSheeld.h>

int Bledpin = 13;
int Yledpin = 12;
int Gledpin = 11;

const char playCommand[] = "play";
const char pauseCommand[] = "stop";
const char stopCommand[] = "yellow";
const char nextCommand[] = "green";
const char BlueCommand[] = "blue";

void setup() {
  pinMode(13, OUTPUT);
  pinMode(12, OUTPUT);
  pinMode(11, OUTPUT);
  OneSheeld.begin();
  VoiceRecognition.setOnError(error);
  VoiceRecognition.start();
}

void loop() {
  if (VoiceRecognition.isNewCommandReceived()) {
    if (!strcmp(playCommand, VoiceRecognition.getLastCommand())) {
      digitalWrite(13, HIGH);
      digitalWrite(12, HIGH);
      digitalWrite(11, HIGH);
    }
    else if (!strcmp(pauseCommand, VoiceRecognition.getLastCommand())) {
      digitalWrite(13, LOW);
      digitalWrite(12, LOW);
      digitalWrite(11, LOW);
    }
    else if (!strcmp(stopCommand, VoiceRecognition.getLastCommand())) {
      digitalWrite(13, LOW);
      digitalWrite(12, HIGH);
      digitalWrite(11, LOW);
    }
    else if (!strcmp(nextCommand, VoiceRecognition.getLastCommand())) {
      digitalWrite(13, LOW);
      digitalWrite(11, HIGH);
      digitalWrite(12, LOW);
    }
    else if (!strcmp(BlueCommand, VoiceRecognition.getLastCommand())) {
      digitalWrite(12, LOW);
      digitalWrite(13, HIGH);
      digitalWrite(11, LOW);
    }
  }
}

void error(byte errorData) {
  switch (errorData) {
    case NETWORK_TIMEOUT_ERROR: Terminal.println("Network timeout"); break;
    case NETWORK_ERROR: Terminal.println("Network Error"); break;
    case AUDIO_ERROR: Terminal.println("Audio error"); break;
    case SERVER_ERROR: Terminal.println("No Server"); break;
    case SPEECH_TIMEOUT_ERROR: Terminal.println("Speech timeout"); break;
    case NO_MATCH_ERROR: Terminal.println("No match"); break;
    case RECOGNIZER_BUSY_ERROR: Terminal.println("Busy"); break;
  }
}

Schema's

circuit.fzz
