Bouw een betrouwbare wekker met DS1302 RTC en Arduino UNO

Onderdelen en benodigdheden

Over dit project

Hallo allemaal, in dit project maken we een eenvoudige wekker met een Arduino UNO-board. Dit project combineert verschillende modules die ik eerder gebruikte; als je ergens vastloopt, kun je de losse moduletutorials op de website raadplegen – zo werk ik meestal: dingen apart testen en daarna combineren.

Benodigde modules

• Arduino UNO-board (of passend alternatief)
• DS1302 RTC-module
• 4x4 Matrix Keypad-module
• LCD I2C-scherm
• Buzzer-module of 2-pins buzzer

Nuttige verwijzingen naar eerdere tutorials

• DS1302 RTC met Keypad + Arduino + LCD instellen
• DS1302 RTC eenvoudig gebruiken met Arduino en LCD
• Arduino LCD I2C eenvoudig gebruik en direct schrijven via Serial Monitor
• Arduino UNO + 4x4 Keypad Matrix + LCD I2C
• Buzzer/piezo-speaker met Arduino gebruiken

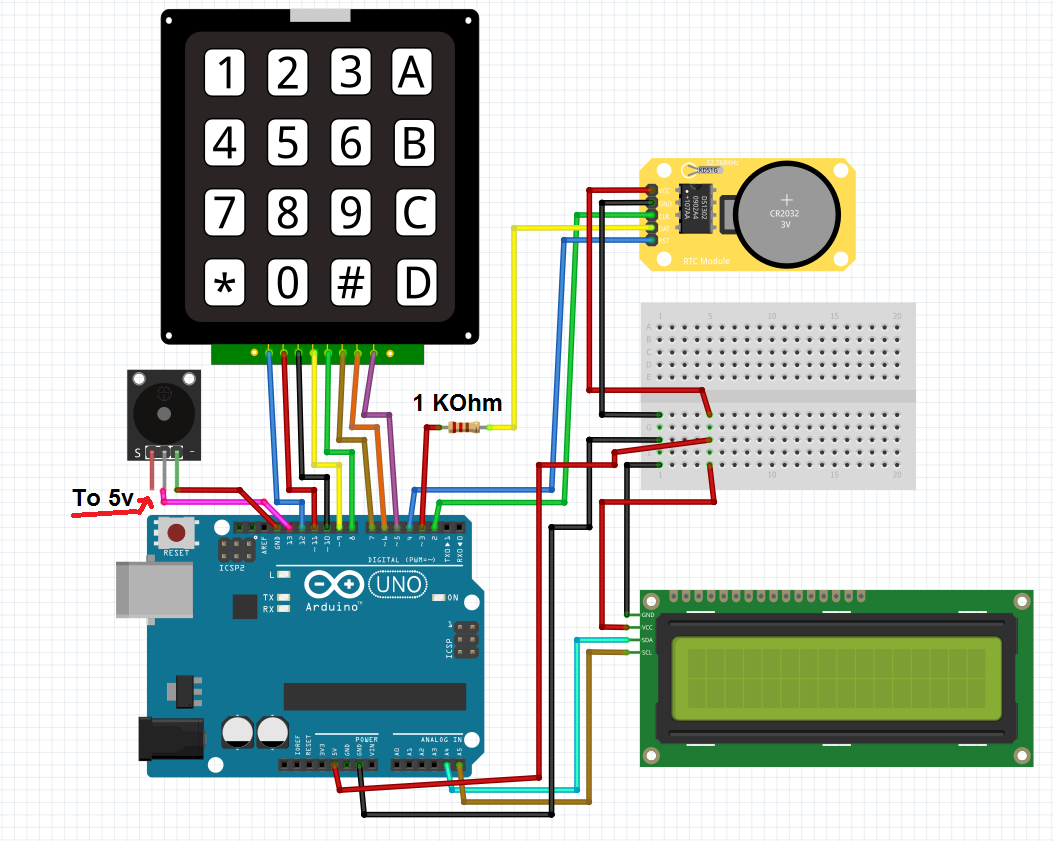

Aansluitschema

Bibliotheken en code

• LCD I2C-bibliotheek (keuzevrij, of eigen download)
• Keypad-bibliotheek (via Arduino IDE te downloaden)
• RTC DS1302 virtuabotix-bibliotheek

Code werking

De code werkt eenvoudig: na het aansluiten druk je op "*" om datum en tijd op de DS1302 RTC in te stellen. Het display toont daarna de huidige dag en tijd. Om de wekker in te stellen druk je op "A" en stel je uur en minuut in. De wekker kun je deactiveren met "B" voordat hij gaat, of door een willekeurige toets in te drukken tijdens het ringen.

Ik hoop dat je er plezier aan beleeft, bij vragen kun je me contacteren.

Complete code (RTC_alarm_clock_LCD.ino)

// Deze code is voor DS1302 RTC-module + 4x4 Keypad + LCD I2C + Arduino + Buzzer
// Na aansluiten toont LCD de standaard datum/tijd of de eerder ingestelde
// Doel: RTC instellen via keypad, blijft bewaard, tonen op scherm, wekker instellen
// Zie Surtrtech.com of SurtrTech YouTube-kanaal voor meer info

#include <Keypad.h>
#include <Wire.h>
#include <virtuabotixRTC.h>
#include <LiquidCrystal_I2C.h>

#define I2C_ADDR 0x27
#define BACKLIGHT_PIN 3
#define En_pin 2
#define Rw_pin 1
#define Rs_pin 0
#define D4_pin 4
#define D5_pin 5
#define D6_pin 6
#define D7_pin 7

LiquidCrystal_I2C lcd(I2C_ADDR, En_pin, Rw_pin, Rs_pin, D4_pin, D5_pin, D6_pin, D7_pin);
virtuabotixRTC myRTC(2, 3, 4); // RTC-aansluiting: CLK, DAT, RST

const byte numRows = 4;
const byte numCols = 4;

char keymap[numRows][numCols] = {
  {'1','2','3','A'},
  {'4','5','6','B'},
  {'7','8','9','C'},
  {'*','0','#','D'}
};

byte rowPins[numRows] = {12, 11, 10, 9};
byte colPins[numCols] = {8, 7, 6, 5};

int i1,i2,i3,i4;
char c1,c2,c3,c4;
char keypressed, keypressedx;
int A_hour = NULL;
int A_minute = NULL;
int AlarmIsActive = NULL;
int buzzer = 13;

Keypad myKeypad = Keypad(makeKeymap(keymap), rowPins, colPins, numRows, numCols);

void setup() {
  Serial.begin(9600);
  lcd.begin(16, 2);
  lcd.setBacklightPin(BACKLIGHT_PIN, POSITIVE);
  lcd.setBacklight(HIGH);
  lcd.home();
}

void loop() {
  while(keypressed == NO_KEY) {
    keypressed = myKeypad.getKey();
    lcd.clear();
    myRTC.updateTime();

    // Wekker controleren
    if(myRTC.hours == A_hour && myRTC.minutes == A_minute && AlarmIsActive == 1 && myRTC.seconds >= 0 && myRTC.seconds <= 2) {
      while(keypressedx == NO_KEY) {
        tone(buzzer, 1000);
        delay(100);
        tone(buzzer, 2000);
        delay(100);
        lcd.clear();
        lcd.print("Wake up !!!");
        keypressedx = myKeypad.getKey();
      }
    }

    keypressedx = NO_KEY;
    noTone(buzzer);

    // Datum en tijd tonen
    lcd.setCursor(0, 0);
    lcd.print(myRTC.dayofmonth);
    lcd.print("/");
    lcd.print(myRTC.month);
    lcd.print("/");
    lcd.print(myRTC.year);

    lcd.setCursor(0, 1);
    lcd.print(myRTC.hours);
    lcd.print(":");
    lcd.print(myRTC.minutes);
    lcd.print(":");
    lcd.print(myRTC.seconds);

    delay(100);
  }

  // Tijd/datum instellen via '*'
  if (keypressed == '*') {
    lcd.clear();
    lcd.print(" Setup");
    delay(1000);

    // Jaar instellen (4 cijfers)
    lcd.clear();
    lcd.print("Setup year");
    char keypressed2 = myKeypad.waitForKey();
    if (keypressed2 != NO_KEY && keypressed2 != '*' && keypressed2 != '#' && keypressed2 != 'A' && keypressed2 != 'B' && keypressed2 != 'C' && keypressed2 != 'D') {
      c1 = keypressed2; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed3 = myKeypad.waitForKey();
    if (keypressed3 != NO_KEY && keypressed3 != '*' && keypressed3 != '#' && keypressed3 != 'A' && keypressed3 != 'B' && keypressed3 != 'C' && keypressed3 != 'D') {
      c2 = keypressed3; lcd.setCursor(1, 1); lcd.print(c2);
    }
    char keypressed4 = myKeypad.waitForKey();
    if (keypressed4 != NO_KEY && keypressed4 != '*' && keypressed4 != '#' && keypressed4 != 'A' && keypressed4 != 'B' && keypressed4 != 'C' && keypressed4 != 'D') {
      c3 = keypressed4; lcd.setCursor(2, 1); lcd.print(c3);
    }
    char keypressed5 = myKeypad.waitForKey();
    if (keypressed5 != NO_KEY && keypressed5 != '*' && keypressed5 != '#' && keypressed5 != 'A' && keypressed5 != 'B' && keypressed5 != 'C' && keypressed5 != 'D') {
      c4 = keypressed5; lcd.setCursor(3, 1); lcd.print(c4);
    }
    i1 = (c1-48)*1000; i2 = (c2-48)*100; i3 = (c3-48)*10; i4 = c4-48;
    int N_year = i1+i2+i3+i4;
    delay(500);

    // Maand instellen (2 cijfers)
    lcd.clear(); lcd.print("Setup month");
    char keypressed6 = myKeypad.waitForKey();
    if (keypressed6 != NO_KEY && keypressed6 != '*' && keypressed6 != '#' && keypressed6 != 'A' && keypressed6 != 'B' && keypressed6 != 'C' && keypressed6 != 'D') {
      c1 = keypressed6; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed7 = myKeypad.waitForKey();
    if (keypressed7 != NO_KEY && keypressed7 != '*' && keypressed7 != '#' && keypressed7 != 'A' && keypressed7 != 'B' && keypressed7 != 'C' && keypressed7 != 'D') {
      c2 = keypressed7; lcd.setCursor(1, 1); lcd.print(c2);
    }
    i1 = (c1-48)*10; i2 = c2-48;
    int N_month = i1+i2;
    delay(500);

    // Dag instellen (2 cijfers)
    lcd.clear(); lcd.print("Setup Day");
    char keypressed8 = myKeypad.waitForKey();
    if (keypressed8 != NO_KEY && keypressed8 != '*' && keypressed8 != '#' && keypressed8 != 'A' && keypressed8 != 'B' && keypressed8 != 'C' && keypressed8 != 'D') {
      c1 = keypressed8; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed9 = myKeypad.waitForKey();
    if (keypressed9 != NO_KEY && keypressed9 != '*' && keypressed9 != '#' && keypressed9 != 'A' && keypressed9 != 'B' && keypressed9 != 'C' && keypressed9 != 'D') {
      c2 = keypressed9; lcd.setCursor(1, 1); lcd.print(c2);
    }
    i1 = (c1-48)*10; i2 = c2-48;
    int N_day = i1+i2;
    delay(500);

    // Uur instellen (2 cijfers)
    lcd.clear(); lcd.print("Setup hour");
    char keypressed10 = myKeypad.waitForKey();
    if (keypressed10 != NO_KEY && keypressed10 != '*' && keypressed10 != '#' && keypressed10 != 'A' && keypressed10 != 'B' && keypressed10 != 'C' && keypressed10 != 'D') {
      c1 = keypressed10; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed11 = myKeypad.waitForKey();
    if (keypressed11 != NO_KEY && keypressed11 != '*' && keypressed11 != '#' && keypressed11 != 'A' && keypressed11 != 'B' && keypressed11 != 'C' && keypressed11 != 'D') {
      c2 = keypressed11; lcd.setCursor(1, 1); lcd.print(c2);
    }
    i1 = (c1-48)*10; i2 = c2-48;
    int N_hour = i1+i2;
    delay(500);

    // Minuten instellen (2 cijfers)
    lcd.clear(); lcd.print("Setup minutes");
    char keypressed12 = myKeypad.waitForKey();
    if (keypressed12 != NO_KEY && keypressed12 != '*' && keypressed12 != '#' && keypressed12 != 'A' && keypressed12 != 'B' && keypressed12 != 'C' && keypressed12 != 'D') {
      c1 = keypressed12; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed13 = myKeypad.waitForKey();
    if (keypressed13 != NO_KEY && keypressed13 != '*' && keypressed13 != '#' && keypressed13 != 'A' && keypressed13 != 'B' && keypressed13 != 'C' && keypressed13 != 'D') {
      c2 = keypressed13; lcd.setCursor(1, 1); lcd.print(c2);
    }
    i1 = (c1-48)*10; i2 = c2-48;
    int N_minutes = i1+i2;
    delay(500);

    // Naar RTC schrijven (seconden=22, dag-van-week=1)
    lcd.clear();
    myRTC.setDS1302Time(22, N_minutes, N_hour, 1, N_day, N_month, N_year);
    keypressed = NO_KEY;
  }

  // Wekker instellen via 'A'
  if (keypressed == 'A') {
    lcd.clear(); lcd.print(" Alarm setup "); delay(1000);
    lcd.clear(); lcd.print("Set alarm hour");
    char keypressed14 = myKeypad.waitForKey();
    if (keypressed14 != NO_KEY && keypressed14 != '*' && keypressed14 != '#' && keypressed14 != 'A' && keypressed14 != 'B' && keypressed14 != 'C' && keypressed14 != 'D') {
      c1 = keypressed14; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed15 = myKeypad.waitForKey();
    if (keypressed15 != NO_KEY && keypressed15 != '*' && keypressed15 != '#' && keypressed15 != 'A' && keypressed15 != 'B' && keypressed15 != 'C' && keypressed15 != 'D') {
      c2 = keypressed15; lcd.setCursor(1, 1); lcd.print(c2);
    }
    i1 = (c1-48)*10; i2 = c2-48;
    A_hour = i1+i2;
    delay(500);

    lcd.clear(); lcd.print("Set alarm minutes");
    char keypressed16 = myKeypad.waitForKey();
    if (keypressed16 != NO_KEY && keypressed16 != '*' && keypressed16 != '#' && keypressed16 != 'A' && keypressed16 != 'B' && keypressed16 != 'C' && keypressed16 != 'D') {
      c1 = keypressed16; lcd.setCursor(0, 1); lcd.print(c1);
    }
    char keypressed17 = myKeypad.waitForKey();
    if (keypressed17 != NO_KEY && keypressed17 != '*' && keypressed17 != '#' && keypressed17 != 'A' && keypressed17 != 'B' && keypressed17 != 'C' && keypressed17 != 'D') {
      c2 = keypressed17; lcd.setCursor(1, 1); lcd.print(c2);
    }
    i1 = (c1-48)*10; i2 = c2-48;
    A_minute = i1+i2;
    delay(500);

    lcd.clear();
    AlarmIsActive = 1;
    keypressed = NO_KEY;
  }

  // Wekker deactiveren via 'B'
  if (keypressed == 'B') {
    lcd.clear();
    lcd.print("Alarm deactivated");
    AlarmIsActive = 0;
    keypressed = NO_KEY;
    delay(500);
  } else {
    myRTC.updateTime();
    keypressed = NO_KEY;
  }
}

Schema's
