Bouw een polyphone Avengers-thema speler met Arduino UNO
Onderdelen en benodigdheden
| Onderdeel | Aantal |
|---|---|
| Arduino UNO | 1 |
| Solderloos breadboard (half size) | 1 |

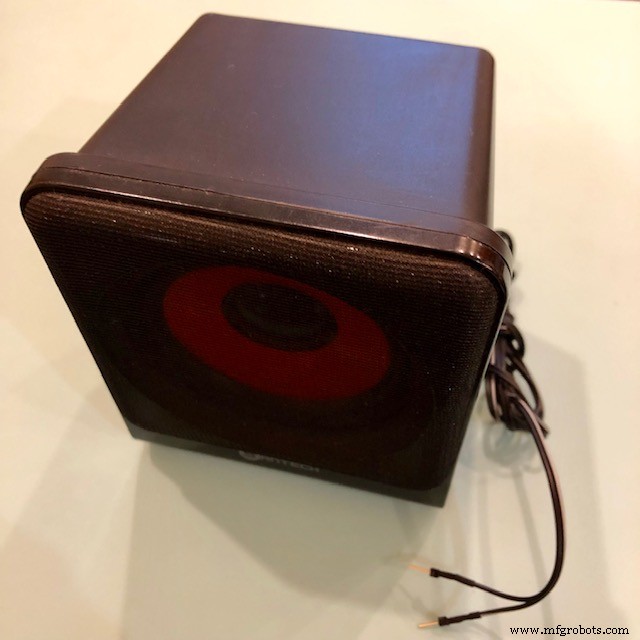

| Luidspreker: 3W, 4 Ω | 1 |
| Weerstand 220 Ω | 3 |
| Weerstand 10 kΩ | 1 |
| Weerstand 4.75 kΩ | 1 |
| Weerstand 56 Ω | 1 |
| LED (standaard) | 3 |
Over dit project
Dit project laat zien hoe je "The Avengers" thema polyfoon kunt afspelen op een Arduino. De standaard tone()-functie speelt maar één toon tegelijk; voor polyfonie gebruiken we de PlayTune-bibliotheek van Len Shustek (maximaal 6 gelijktijdige tonen op Arduino Mega, 3 op Uno).
Bibliotheek downloaden: https://github.com/LenShustek/arduino-playtune

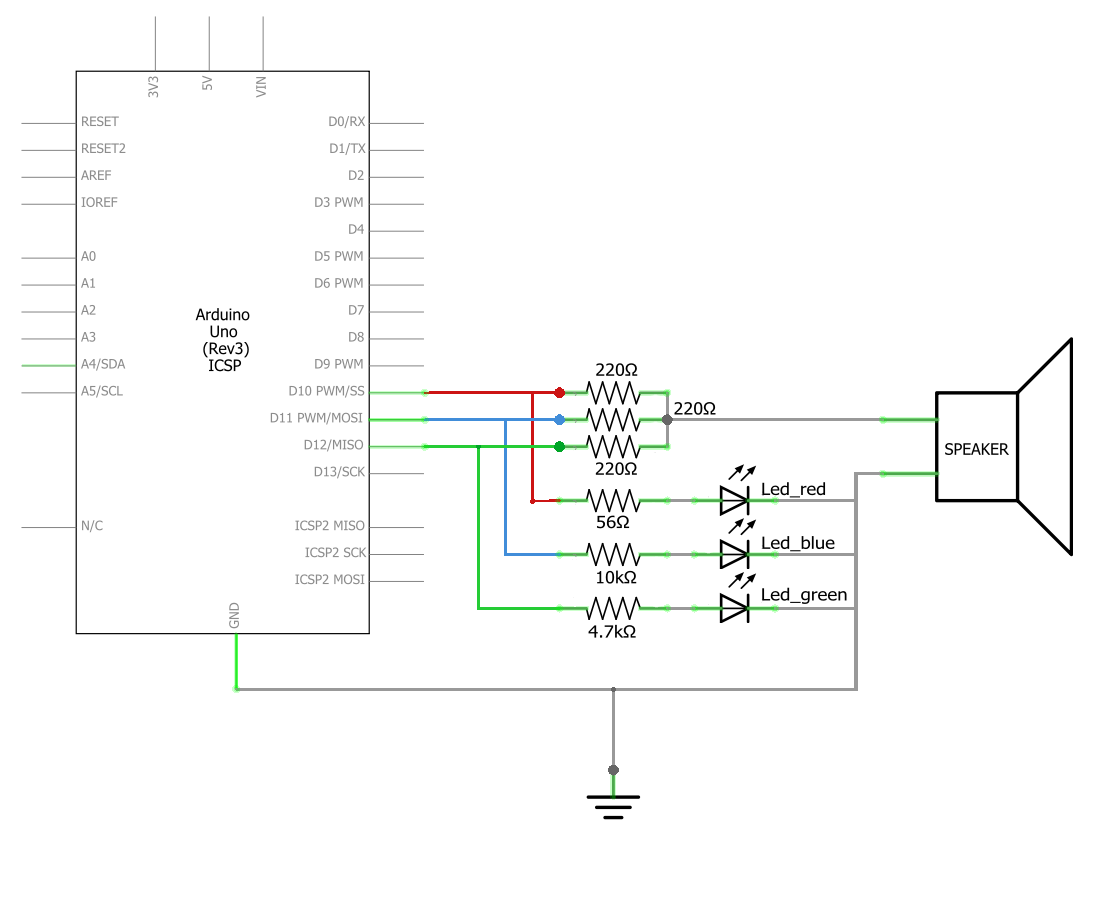

Schema
Verbinde digitale pinnen 10, 11 en 12 elk via een 220 Ω-weerstand met één terminal van de luidspreker. De andere terminal van de luidspreker naar GND. Optioneel: een LED op elke pin (met weerstand) om kanaalactiviteit aan te tonen; dit beïnvloedt geluid niet.

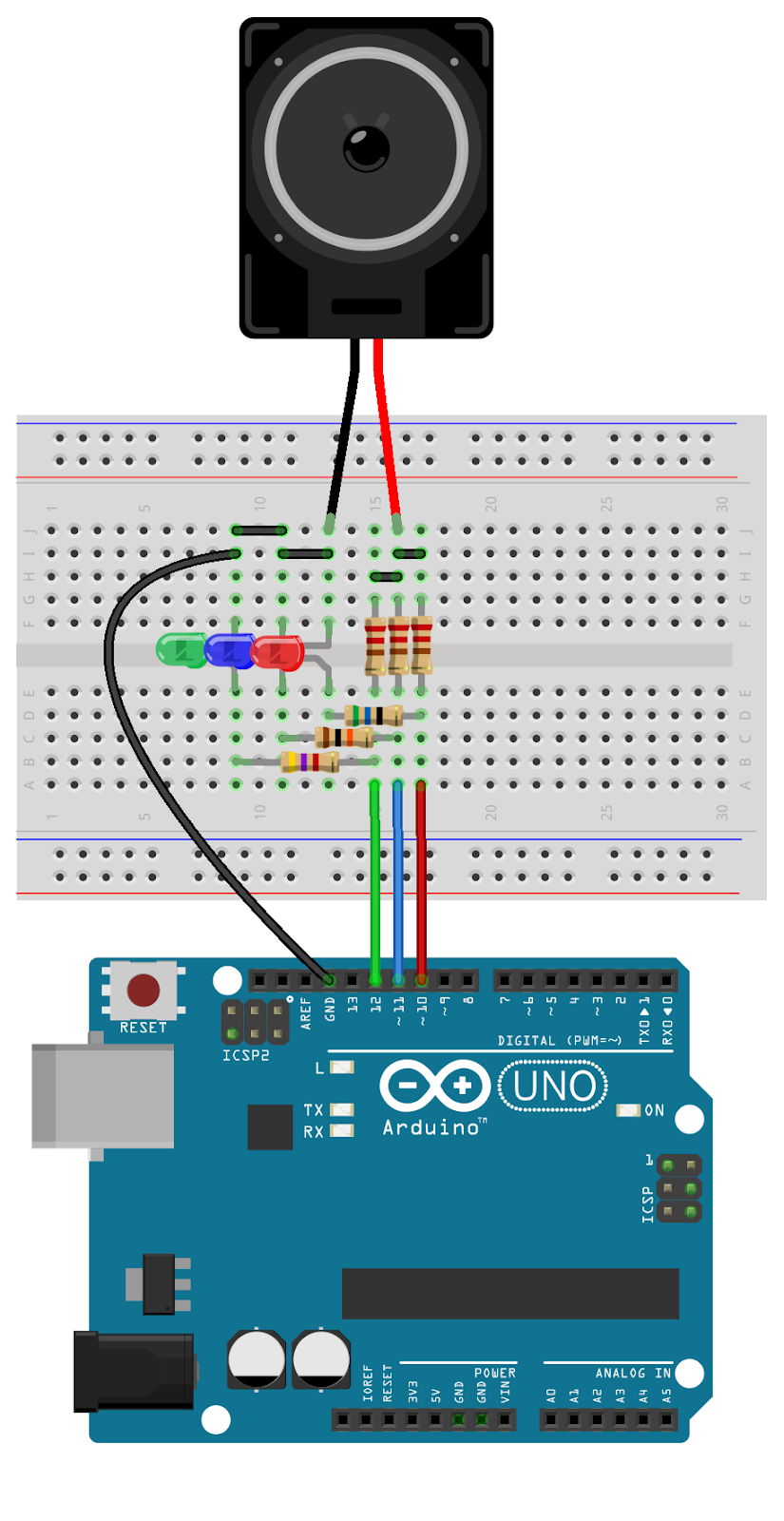

Breadboard-opbouw
De schakeling past gemakkelijk op een breadboard. Gebruik een luidspreker (buzzers geven te laag volume). Een kleine luidsprekerbehuizing (zelfs zonder versterker) verbetert de klank. In de demo werd een 4 Ω luidspreker uit een multimediaset gebruikt.
Programmeren
Upload de onderstaande code na installatie van de PlayTune-bibliotheek (downloadlink in oorspronkelijke beschrijving).
Code
Hoofdprogramma (Arduino)
// Speelt polyfoon muzie met 3 interrupts
// Playtune bibliotheek vereist: https://github.com/LenShustek/arduino-playtune
// 2019 - Marcelo Maximiano - Maxblitz.com
#include <Playtune.h>
const byte PROGMEM avengers[] = {
0x90,0x3E,0x00,0x7A,0x80,0x00,0x02,0x90,0x3E,0x00,0x7A,0x80,0x00,0x02,0x90,0x3E,
0x00,0x7A,0x80,0x01,0x79,0x90,0x3E,0x00,0x7A,0x80,0x00,0x02,0x90,0x3E,0x00,0x7A,
0x80,0x00,0x02,0x90,0x3E,0x00,0x7A,0x80,0x01,0x79,0x90,0x3E,0x00,0x7A,0x80,0x00,
0x02,0x90,0x3E,0x00,0x7A,0x80,0x00,0x02,0x90,0x3E,0x00,0x7A,0x80,0x00,0x02,0x90,
0x3F,0x00,0x7A,0x80,0x00,0x02,0x90,0x3F,0x00,0x7A,0x80,0x00,0x02,0x90,0x3F,0x00,
0x7A,0x80,0x01,0x79,0x90,0x3F,0x00,0x7A,0x80,0x00,0x02,0x90,0x3F,0x00,0x7A,0x80,
0x00,0x02,0x90,0x40,0x00,0x7A,0x80,0x01,0x79,0x90,0x40,0x00,0x7A,0x80,0x00,0x02,
0x90,0x40,0x00,0x7A,0x80,0x00,0x02,0x90,0x40,0x00,0x7A,0x80,0x00,0x02,0x90,0x40,
0x00,0x7A,0x80,0x00,0x02,0x90,0x41,0x00,0x7A,0x80,0x00,0x02,0x90,0x41,0x00,0x7A,
0x80,0x00,0x02,0x90,0x41,0x00,0x7A,0x80,0x01,0x79,0x90,0x41,0x00,0x7A,0x80,0x00,
0x02,0x90,0x41,0x00,0x7A,0x80,0x00,0x02,0x90,0x40,0x00,0x7A,0x80,0x01,0x79,0x90,
0x40,0x00,0x7A,0x80,0x00,0x02,0x90,0x40,0x00,0x7A,0x80,0x00,0x02,0x90,0x40,0x00,
0x7A,0x80,0x00,0x02,0x90,0x40,0x00,0x7A,0x80,0x00,0x02,0x90,0x3F,0x00,0x7A,0x80,
0x00,0x02,0x90,0x3F,0x00,0x7A,0x80,0x00,0x02,0x90,0x3F,0x00,0x7A,0x80,0x01,0x79,
0x90,0x3F,0x00,0x7A,0x80,0x00,0x02,0x90,0x3F,0x00,0x7A,0x80,0x00,0x02,0x90,0x3A,
0x00,0xF7,0x80,0x00,0xFC,0x90,0x3C,0x00,0xF7,0x80,0x00,0xFC,0x90,0x4A,0x91,0x37,
0x92,0x4F,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x3E,0x91,0x4A,0x00,0x7A,0x80,0x81,
0x00,0x02,0x90,0x3E,0x91,0x4A,0x00,0x7A,0x80,0x81,0x01,0x79,0x90,0x3E,0x91,0x4A,
0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x3E,0x91,0x4A,0x00,0x7A,0x80,0x81,0x00,0x02,
0x90,0x3E,0x91,0x4A,0x00,0x7A,0x80,0x81,0x01,0x79,0x90,0x3E,0x91,0x4A,0x00,0x7A,
0x80,0x81,0x00,0x02,0x90,0x3E,0x91,0x4A,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x3E,
0x91,0x4A,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x4F,0x90,0x3F,0x91,0x4B,
0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x3F,0x91,0x4B,0x00,0x7A,0x80,0x81,0x00,0x02,
0x90,0x3F,0x91,0x4B,0x00,0x7A,0x80,0x81,0x01,0x79,0x90,0x3F,0x91,0x4B,0x00,0x7A,
0x80,0x81,0x00,0x02,0x90,0x3F,0x91,0x4B,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x40,
0x91,0x4C,0x00,0x7A,0x80,0x81,0x01,0x79,0x90,0x40,0x91,0x4C,0x00,0x7A,0x80,0x81,
0x00,0x02,0x90,0x40,0x91,0x4C,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x40,0x91,0x4C,
0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x40,0x91,0x4C,0x00,0x7A,0x82,0x80,0x81,0x00,
0x02,0x92,0x4F,0x90,0x41,0x91,0x4D,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x41,0x91,
0x4D,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x41,0x91,0x4D,0x00,0x7A,0x80,0x81,0x01,
0x79,0x90,0x41,0x91,0x4D,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x41,0x91,0x4D,0x00,
0x7A,0x80,0x81,0x00,0x02,0x90,0x40,0x91,0x4C,0x00,0x7A,0x80,0x81,0x01,0x79,0x90,
0x40,0x91,0x4C,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x40,0x91,0x4C,0x00,0x7A,0x80,
0x81,0x00,0x02,0x90,0x40,0x91,0x4C,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x40,0x91,
0x4C,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x4F,0x90,0x3F,0x91,0x4B,0x00,0x7A,
0x80,0x81,0x00,0x02,0x90,0x3F,0x91,0x4B,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x3F,
0x91,0x4B,0x00,0x7A,0x80,0x81,0x01,0x79,0x90,0x3F,0x91,0x4B,0x00,0x7A,0x80,0x81,
0x00,0x02,0x90,0x3F,0x91,0x4B,0x00,0x7A,0x80,0x81,0x00,0x02,0x90,0x3A,0x91,0x46,
0x00,0xF7,0x80,0x81,0x00,0xFC,0x90,0x3C,0x91,0x48,0x00,0xF7,0x80,0x81,0x00,0xFA,
0x82,0x00,0x02,0x90,0x37,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,
0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,
0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,
0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,
0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,
0x7A,0x81,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,
0x91,0x3E,0x92,0x4A,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x91,0x3E,0x92,
0x4A,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x90,0x3E,0x91,0x3F,0x92,0x4B,
0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,
0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,
0x00,0x02,0x90,0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x3C,0x80,
0x00,0x3E,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,
0x00,0x02,0x90,0x3A,0x91,0x3F,0x92,0x4B,0x00,0x3C,0x80,0x00,0x3E,0x81,0x82,0x00,
0x02,0x90,0x3A,0x91,0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,
0x82,0x00,0x02,0x90,0x3C,0x91,0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,
0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x40,0x92,0x4C,0x00,0x7A,0x80,
0x81,0x82,0x00,0x02,0x90,0x3E,0x91,0x40,0x92,0x4C,0x00,0x7A,0x80,0x81,0x82,0x00,
0x02,0x90,0x3E,0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x41,0x92,
0x4D,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,0x82,0x00,
0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x37,0x92,0x4F,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,
0x82,0x00,0x02,0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x40,0x92,
0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x91,0x40,0x92,
0x4C,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x91,0x40,0x92,0x4C,0x90,0x37,
0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x91,0x40,0x92,0x4C,0x90,0x37,0x00,0x7A,0x81,
0x82,0x80,0x00,0x02,0x91,0x40,0x92,0x4C,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,
0x02,0x90,0x3E,0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3F,0x92,
0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,
0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x3C,0x92,0x4F,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4A,0x00,0x3C,0x80,0x00,0x3E,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,
0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x90,0x3A,0x91,0x3F,0x92,0x4B,0x00,
0x3C,0x80,0x00,0x3E,0x81,0x82,0x00,0x02,0x90,0x3A,0x91,0x3A,0x92,0x46,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x39,0x91,0x3C,0x92,0x48,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,
0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x37,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,
0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,
0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,
0x7A,0x81,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,
0x3E,0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x91,0x3E,
0x92,0x4A,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x00,0x7A,0x80,0x81,
0x82,0x00,0x02,0x91,0x3E,0x92,0x4A,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,
0x91,0x3E,0x92,0x4A,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x90,0x3E,0x91,
0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,
0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4F,0x00,
0x7A,0x80,0x82,0x00,0x02,0x90,0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,
0x00,0x3C,0x80,0x00,0x3E,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x90,0x37,0x00,0x7A,
0x81,0x82,0x80,0x00,0x02,0x90,0x3A,0x91,0x3F,0x92,0x4B,0x00,0x3C,0x80,0x00,0x3E,
0x81,0x82,0x00,0x02,0x90,0x3A,0x91,0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,
0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x3C,0x91,0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,
0x00,0x02,0x91,0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x40,0x92,0x4C,
0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x3E,0x91,0x40,0x92,0x4C,0x00,0x7A,0x80,
0x81,0x82,0x00,0x02,0x90,0x3E,0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,0x82,0x00,0x02,
0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x41,0x92,0x4D,0x00,0x7A,
0x81,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x37,0x92,0x4F,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x91,0x41,0x92,0x4D,
0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x41,0x92,0x4D,0x00,0x7A,0x81,0x82,0x00,0x02,
0x91,0x40,0x92,0x4C,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,
0x91,0x40,0x92,0x4C,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x91,0x40,0x92,
0x4C,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x91,0x40,0x92,0x4C,0x90,0x37,
0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x91,0x40,0x92,0x4C,0x90,0x37,0x00,0x7A,0x81,
0x82,0x80,0x00,0x02,0x90,0x3E,0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,
0x91,0x3F,0x92,0x4B,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x3F,0x92,0x4B,0x00,0x7A,
0x81,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x3C,0x92,0x4F,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x3C,0x80,0x00,0x3E,0x82,0x00,0x02,0x91,
0x3F,0x92,0x4B,0x90,0x37,0x00,0x7A,0x81,0x82,0x80,0x00,0x02,0x90,0x3A,0x91,0x3F,
0x92,0x4B,0x00,0x3C,0x80,0x00,0x3E,0x81,0x82,0x00,0x02,0x90,0x3A,0x91,0x3A,0x92,
0x46,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x39,0x91,0x3C,0x92,0x48,
0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x00,0x02,0x90,0x4F,0x91,0x37,0x92,0x3E,0x00,
0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,
0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,
0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x80,0x81,0x82,0x00,
0x02,0x92,0x3E,0x90,0x4A,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x3E,
0x90,0x4A,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x90,0x56,0x91,0x3E,0x92,
0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x3F,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x54,0x91,
0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x3C,0x80,0x81,0x00,0x3E,
0x82,0x00,0x02,0x92,0x3F,0x90,0x4B,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,
0x90,0x52,0x91,0x3A,0x92,0x3F,0x00,0x3C,0x80,0x81,0x00,0x3E,0x82,0x00,0x02,0x90,
0x52,0x91,0x3A,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,
0x02,0x90,0x54,0x91,0x3C,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,
0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x56,0x91,0x3E,
0x92,0x40,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x56,0x91,0x3E,0x92,0x41,0x00,
0x7A,0x82,0x00,0x02,0x92,0x41,0x00,0x7A,0x82,0x00,0x02,0x92,0x41,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x4F,0x91,0x37,0x92,
0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x41,0x00,
0x7A,0x82,0x00,0x02,0x92,0x41,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x92,0x40,0x90,0x4C,0x91,0x37,0x00,
0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x40,0x90,0x4C,0x91,0x37,0x00,0x7A,0x82,0x80,
0x81,0x00,0x02,0x92,0x40,0x90,0x4C,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,
0x92,0x40,0x90,0x4C,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x90,0x56,0x91,
0x3E,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,
0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,
0x54,0x91,0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x3C,0x80,0x81,
0x00,0x3E,0x82,0x00,0x02,0x92,0x3F,0x90,0x4B,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,
0x00,0x02,0x90,0x52,0x91,0x3A,0x92,0x3F,0x00,0x3C,0x80,0x81,0x00,0x3E,0x82,0x00,
0x02,0x90,0x52,0x91,0x3A,0x92,0x3A,0x00,0x7A,0x00,0x02,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,
0x90,0x51,0x91,0x39,0x92,0x3C,0x00,0x7A,0x00,0x02,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,
0x4F,0x91,0x37,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,
0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,
0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,0x00,0x7A,0x82,0x00,0x02,0x92,0x3E,
0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x92,0x3E,0x90,0x4A,0x91,0x37,0x00,0x7A,0x82,
0x80,0x81,0x00,0x02,0x92,0x3E,0x90,0x4A,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,
0x02,0x90,0x56,0x91,0x3E,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x3F,0x00,0x7A,
0x82,0x00,0x02,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,
0x82,0x00,0x02,0x90,0x54,0x91,0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,
0x00,0x3C,0x80,0x81,0x00,0x3E,0x82,0x00,0x02,0x92,0x3F,0x90,0x4B,0x91,0x37,0x00,
0x7A,0x82,0x80,0x81,0x00,0x02,0x90,0x52,0x91,0x3A,0x92,0x3F,0x00,0x3C,0x80,0x81,
0x00,0x3E,0x82,0x00,0x02,0x90,0x52,0x91,0x3A,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,
0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x54,0x91,0x3C,0x92,0x40,0x00,0x7A,0x82,
0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x80,0x81,0x82,
0x00,0x02,0x90,0x56,0x91,0x3E,0x92,0x40,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,
0x56,0x91,0x3E,0x92,0x41,0x00,0x7A,0x82,0x00,0x02,0x92,0x41,0x00,0x7A,0x82,0x00,
0x02,0x92,0x41,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,
0x02,0x90,0x4F,0x91,0x37,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,
0x82,0x00,0x02,0x92,0x41,0x00,0x7A,0x82,0x00,0x02,0x92,0x41,0x00,0x7A,0x82,0x00,
0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x92,
0x40,0x90,0x4C,0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x40,0x90,0x4C,
0x91,0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x40,0x90,0x4C,0x91,0x37,0x00,
0x7A,0x82,0x80,0x81,0x00,0x02,0x92,0x40,0x90,0x4C,0x91,0x37,0x00,0x7A,0x82,0x80,
0x81,0x00,0x02,0x90,0x56,0x91,0x3E,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x3F,
0x00,0x7A,0x82,0x00,0x02,0x92,0x3F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,
0x80,0x81,0x82,0x00,0x02,0x90,0x54,0x91,0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x3C,0x80,0x81,0x00,0x3E,0x82,0x00,0x02,0x92,0x3F,0x90,0x4B,0x91,
0x37,0x00,0x7A,0x82,0x80,0x81,0x00,0x02,0x90,0x52,0x91,0x3A,0x92,0x3F,0x00,0x3C,
0x80,0x81,0x00,0x3E,0x82,0x00,0x02,0x90,0x52,0x91,0x3A,0x92,0x3A,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,
0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x51,0x91,0x39,0x92,0x3C,0x00,0x7A,0x00,0x02,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,
0x80,0x81,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,
0x02,0x91,0x37,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x81,0x82,0x00,0x02,
0x91,0x43,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x81,0x82,0x00,0x02,0x90,0x37,0x92,0x4F,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,
0x00,0x7A,0x82,0x00,0x02,0x91,0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,
0x02,0x91,0x3E,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x81,0x82,
0x00,0x02,0x91,0x3A,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x81,
0x82,0x00,0x02,0x91,0x37,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x81,0x82,
0x00,0x02,0x91,0x43,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x81,0x82,0x00,0x02,0x90,0x3F,0x91,
0x3C,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x3E,0x91,0x3B,0x92,
0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4A,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x48,0x91,0x4C,0x92,0x54,0x00,
0x7A,0x81,0x00,0x02,0x91,0x48,0x00,0x7A,0x81,0x00,0x02,0x91,0x48,0x00,0x7A,0x81,
0x00,0x02,0x91,0x4C,0x00,0x7A,0x81,0x00,0x02,0x91,0x3C,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x00,0x02,0x91,0x48,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x00,0x02,0x91,
0x4C,0x00,0x7A,0x81,0x00,0x02,0x91,0x48,0x00,0x7A,0x81,0x00,0x02,0x91,0x48,0x00,
0x7A,0x81,0x00,0x02,0x91,0x4C,0x00,0x7A,0x81,0x00,0x02,0x91,0x41,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x00,0x02,0x91,0x4D,
0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,
0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x00,0x02,0x91,0x48,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x82,0x80,0x81,0x00,0x02,0x91,0x3E,0x92,0x56,0x90,0x4A,0x01,0xF4,0x01,0xF1,
0x00,0x02,0x03,0xE5,0x80,0x81,0x82,0x00,0x02,0x90,0x4C,0x92,0x4C,0x91,0x3B,0x01,
0xF4,0x01,0xF1,0x80,0x82,0x81,0x00,0x02,0x90,0x4B,0x92,0x4B,0x91,0x3B,0x03,0xE5,
0x80,0x82,0x81,0x00,0x02,0x92,0x43,0x91,0x43,0x90,0x40,0x00,0x7A,0x82,0x81,0x00,
0x02,0x92,0x43,0x91,0x43,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x40,0x91,0x40,0x00,
0x7A,0x82,0x81,0x00,0x02,0x92,0x40,0x91,0x40,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,
0x40,0x91,0x40,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x40,0x91,0x40,0x00,0x7A,0x82,
0x81,0x00,0x02,0x92,0x43,0x91,0x43,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x43,0x91,
0x43,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x43,0x91,0x43,0x00,0x7A,0x82,0x81,0x00,
0x02,0x92,0x43,0x91,0x43,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x40,0x91,0x40,0x00,
0x7A,0x82,0x81,0x00,0x02,0x92,0x40,0x91,0x40,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,
0x40,0x91,0x40,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x40,0x91,0x40,0x00,0x7A,0x82,
0x81,0x00,0x02,0x92,0x43,0x91,0x43,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x43,0x91,
0x43,0x00,0x7A,0x80,0x82,0x81,0x00,0x02,0x90,0x3C,0x91,0x40,0x92,0x43,0x00,0x7A,
0x82,0x00,0x02,0x92,0x43,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,
0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x82,0x00,0x02,0x92,0x47,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x81,
0x82,0x00,0x02,0x90,0x3D,0x91,0x40,0x92,0x45,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,
0x90,0x3C,0x91,0x40,0x92,0x43,0x00,0x7A,0x82,0x00,0x02,0x92,0x43,0x00,0x7A,0x82,
0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,
0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x43,
0x00,0x7A,0x82,0x00,0x02,0x92,0x43,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x3E,
0x91,0x42,0x92,0x43,0x00,0x7A,0x82,0x00,0x02,0x92,0x43,0x00,0x7A,0x82,0x00,0x02,
0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x40,
0x00,0x7A,0x82,0x00,0x02,0x92,0x40,0x00,0x7A,0x82,0x00,0x02,0x92,0x43,0x00,0x7A,
0x82,0x00,0x02,0x92,0x43,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x40,0x91,0x43,
0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x81,0x82,
0x00,0x02,0x90,0x3C,0x91,0x40,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4C,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x82,0x00,0x02,0x92,0x53,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x3D,0x91,0x40,0x92,0x51,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x81,0x82,
0x00,0x02,0x90,0x3C,0x91,0x40,0x92,0x53,0x00,0x7A,0x82,0x00,0x02,0x92,0x53,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,
0x92,0x53,0x00,0x7A,0x82,0x00,0x02,0x92,0x53,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,
0x90,0x3B,0x91,0x3F,0x92,0x53,0x00,0x7A,0x82,0x00,0x02,0x92,0x53,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,0x92,0x4E,0x00,0x7A,0x82,0x00,0x02,0x92,0x53,
0x00,0x7A,0x82,0x00,0x02,0x92,0x53,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x3C,
0x91,0x43,0x92,0x40,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,
0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x42,
0x92,0x3E,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x43,0x92,0x40,0x00,0x7A,0x80,0x81,
0x82,0x00,0x02,0x90,0x3E,0x91,0x45,0x92,0x42,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,
0x90,0x3C,0x91,0x56,0x92,0x3E,0x00,0x7A,0x80,0x81,0x82,0x00,0x7F,0x90,0x3C,0x91,
0x58,0x92,0x40,0x00,0x7A,0x80,0x81,0x82,0x02,0x73,0x90,0x3C,0x91,0x58,0x92,0x40,
0x00,0x7A,0x80,0x81,0x82,0x00,0x7F,0x90,0x3E,0x91,0x5A,0x92,0x42,0x00,0x7A,0x80,
0x81,0x82,0x02,0x73,0x90,0x40,0x91,0x40,0x92,0x40,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x00,0x02,0x90,0x3C,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,
0x40,0x92,0x4C,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x81,0x82,0x00,0x02,0x91,0x40,0x92,0x4C,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,
0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,
0x82,0x00,0x02,0x91,0x47,0x92,0x53,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x81,0x82,
0x00,0x02,0x90,0x3D,0x91,0x45,0x92,0x51,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,
0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,
0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x81,0x82,0x00,0x02,0x91,0x45,
0x92,0x51,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x80,0x81,0x82,0x00,0x02,0x90,0x3C,0x91,0x47,0x92,0x53,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,
0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x00,0x02,0x90,0x3B,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,
0x00,0x02,0x00,0x7A,0x00,0x02,0x00,0x7A,0x80,0x81,0x82,0x00,0x02,0x90,0x43,0x92,
0x4F,0x91,0x58,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,
0x00,0x02,0x90,0x40,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x81,0x00,
0x02,0x92,0x4C,0x91,0x58,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x81,0x00,0x02,
0x92,0x4F,0x91,0x58,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x81,0x00,0x02,0x92,0x4F,0x91,
0x5F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x81,0x00,0x02,0x90,
0x40,0x92,0x4F,0x91,0x5D,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,
0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,
0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,
0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,
0x80,0x82,0x81,0x00,0x02,0x90,0x40,0x92,0x4F,0x91,0x5B,0x00,0x7A,0x82,0x00,0x02,
0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,
0x81,0x00,0x02,0x90,0x42,0x92,0x4F,0x91,0x5A,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,
0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,
0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,0x02,0x92,0x4C,0x00,0x7A,0x82,0x00,
0x02,0x92,0x4F,0x00,0x7A,0x82,0x00,0x02,0x92,0x4F,0x00,0x7A,0x80,0x82,0x81,0x00,
0x02,0x90,0x3E,0x92,0x4F,0x91,0x58,0x00,0x7A,0x82,0x80,0x00,0x02,0x92,0x4F,0x90,
0x43,0x00,0x7A,0x82,0x80,0x00,0x02,0x90,0x40,0x92,0x4C,0x00,0x7A,0x82,0x80,0x00,
0x02,0x92,0x4C,0x90,0x40,0x00,0x7A,0x82,0x80,0x00,0x02,0x92,0x4C,0x90,0x40,0x00,
0x7A,0x82,0x80,0x00,0x02,0x92,0x4C,0x90,0x40,0x00,0x7A,0x82,0x80,0x00,0x02,0x92,
0x4F,0x90,0x43,0x00,0x7A,0x82,0x80,0x00,0x02,0x92,0x4F,0x90,0x43,0x00,0x7A,0x82,
0x81,0x80,0x00,0x02,0x90,0x3E,0x92,0x4A,0x91,0x56,0x00,0x7A,0x82,0x81,0x80,0x00,
0x7F,0x92,0x4C,0x91,0x58,0x90,0x4C,0x00,0x7A,0x82,0x81,0x80,0x02,0x73,0x92,0x4C,
0x91,0x58,0x90,0x4C,0x00,0x7A,0x82,0x81,0x80,0x00,0x7F,0x92,0x4E,0x91,0x5A,0x90,
0x4E,0x00,0x7A,0x82,0x81,0x80,0x02,0x73,0x92,0x4C,0x91,0x58,0x90,0x4C,0x0F,0x9D,
0x82,0x81,0x80,0xF0
};
Playtune p;
void setup() {
p.tune_initchan(10);
p.tune_initchan(11);
p.tune_initchan(12);
}
void loop() {
p.tune_playscore(avengers); // start
while (p.tune_playing); // wacht tot afgelopen
p.tune_delay(3000); // pauze 3s (geen Arduino delay)
}
GitHub
PlayTune bibliotheek: https://github.com/LenShustek/arduino-playtune
Schema's
Schema's, breadboard-aansluitingen en PCB-ontwerp in bijlage: avengers_XPBiYYW5Xc.zip
T-Rex-duino: Arduino-kloon van de klassieke Chrome Dinosaur Game
Ultragevoelige Akoestische Variometer: Een Precisiebarometer voor Piloten
Productieproces
- Slimme Plantenalarmer – DIY Sensor voor Optimale Hydratatie
- Bouw een Italiaanse Woordklok met Arduino Nano, NeoPixel, LCD en RTC
- Bespaar Arduino-pins: Sluit een 4x3-toetsenblok aan met slechts 3 verbindingen
- Bouw een Betrouwbare Sigfox kWh Meter met Arduino MKR Fox 1200
- Bluetooth Temperatuurmeter met Arduino Nano
- DIY Autoranging Condensatiemeter (10 pF–10 µF) – Simpele Arduino Bouw
- Contactloos Gebaarslot: Veilige toegang met APDS-9960 en Arduino
- Arduino Nano Companion Kit – Essentiële Componenten & Hulpmiddelen voor DIY Electronica
- USB MIDI Adapter Kit voor Arduino Micro / Leonardo – Complete Onderdelenlijst
- Geïsoleerde analoge ingangsschakeling voor Arduino bouwen
- Precisie Reactietijd Test met Arduino UNO
